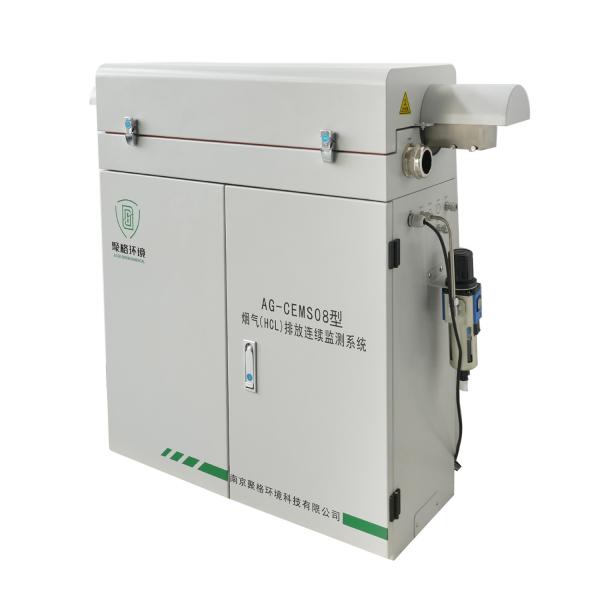

Waste Incineration Gas Analyzer CEMS Flue Gas HCl CO Continuous Emission Monitoring System
>>Overview
Designed for the conditions of flue gas after waste incineration, industrial instruments are used for continuous online measurement of SO2, NO, NO2, CO, CO2, O2, NH3, HCl, H2O, flow rate, pressure, temperature, particulate matter, and other components. Additional measurement components can be added according to user requirements.
Mainly applied in domestic and international municipal waste incineration, hazardous waste incineration, medical waste incineration, sludge incineration, biomass boilers, thermal power plants, steel mills, and other high-temperature, high-humidity environments.
>>Feature
1) Self-diagnosis and alarm function.
2) Laser absorption spectroscopy with minimal background interference and fast response.
3) High detection sensitivity and low resolution.
4) Built-in long optical path design to solve interference issues.
5) Low system maintenance cost and minimal maintenance.
6) High structural stability, adaptable to various environments.
>>Main technical parameters
| Working condition |
Power supply |
220vac,<3kw |
| Sweeping gas |
(0.4~0.6) MPA compressed air |
| Ambient temperature |
-20ºC~55ºC |
| Performance index |
Light path length |
760mm |
| Range |
0~100 (ppm or mg/m3) (range-adjustable) |
| T90 response time |
<300 seconds |
| Reading error |
≤ ± 5% (nominal value) |
| Repeatability |
≤ ±2% F.S |
| Drift |
≤ ±2.5% F.S |
| Protection level |
Ip55 |
| Preheating time |
120min |
| Functional parameter |
Digital output |
RS485 |
| Analog output |
4 -20 ma maximum load of 500Ω |
| Switch output |
Load capacity: Ac / DC 24V / l A;
Backback signal, low instrument wind pressure, abnormal temperature alarm, etc. (customizable) |
| Sample gas temperature |
<600ºC |
| Other parameters |
Sample gas pressure |
Atmospheric pressure of ± 5 KPA |
| Sampling traffic |
2-3l/min |
| Ambient temperature |
-10~55ºC |
| Ambient pressure |
70~120kpa |
| Outline dimension |
(950h×1160l×325w)mm |
| Weight |
120kg |
>>System composition
| No. |
Name |
Model and specification |
Quantity |
Unit |
| 1 |
Pre-processing cabinet |
Pre-treatment and control devices |
1 |
Set |
| 1.1 |
Analysis Cabinet |
950H×1160L×325W mm |
1 |
Set |
| 1.2 |
Electromagnetic valve |
DC24v, normally closed |
2 |
Set |
| 1.3 |
Injection pump |
8l/min |
1 |
Set |
| 1.4 |
High-temperature precision filter |
0.2um |
1 |
Set |
| 1.5 |
Control circuit |
Including automatic sampling, back-blowing, and temperature control |
1 |
Set |
| 1.6 |
High temperature cut-off valve |
BTB-DN10, with a pneumatic valve |
1 |
Set |
| 2 |
Analytic system |
HCL, CO analyzer |
1 |
Set |
| 3 |
Heated-type sampling probe |
AG-TT07 |
1 |
Set |
| 4 |
Sampling heat tracing pipeline |
60w/m |
3 |
Set |
| 5 |
Spare part |
See the list of spare parts |
1 |
Set |
